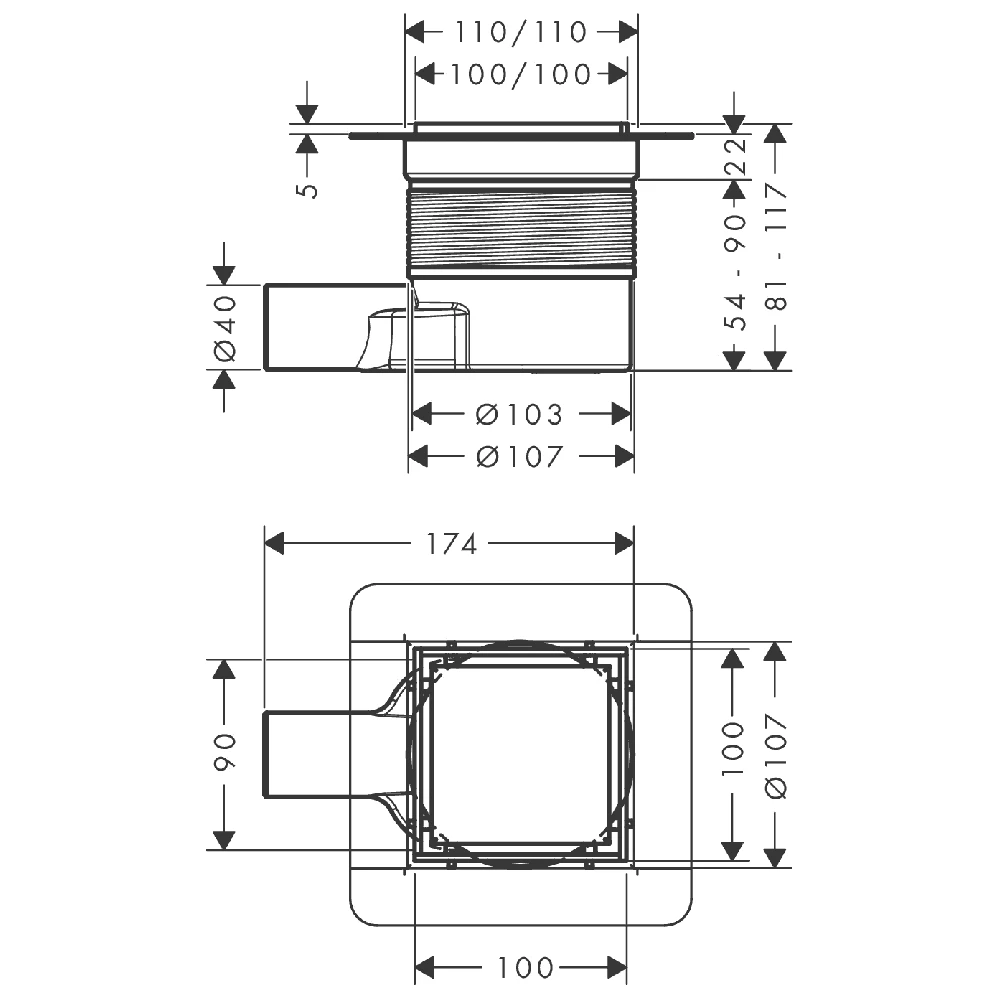

| DIMENSIONS | |
|---|---|
| Length (Left to Right) | 100mm |
| Height | 117mm |
| Width (Front to Back) | 100mm |
| PRODUCT FEATURES | |
|---|---|
| Style | Contemporary |
| Colour | Black |
| Finish | Matt |
| Guarantee | 5 Year manufacturers guarantee against manufacturing defects |
Additional Information

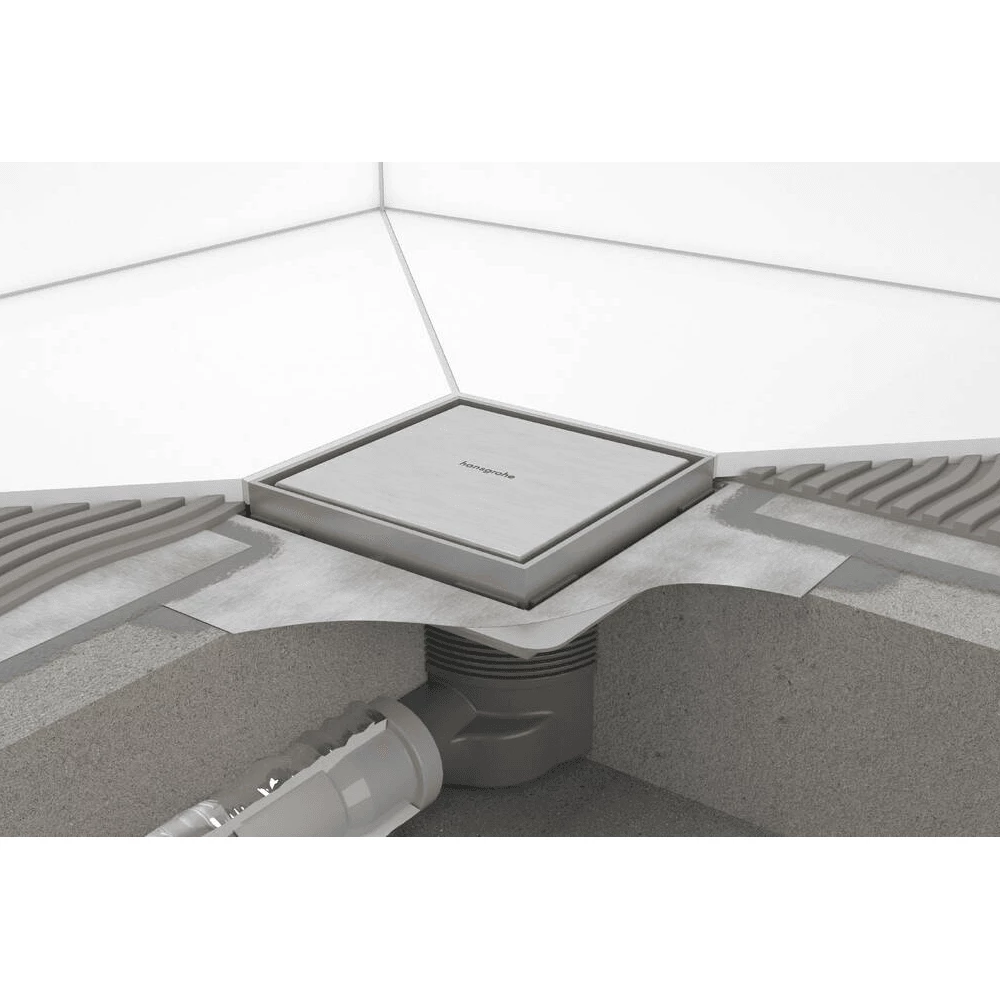

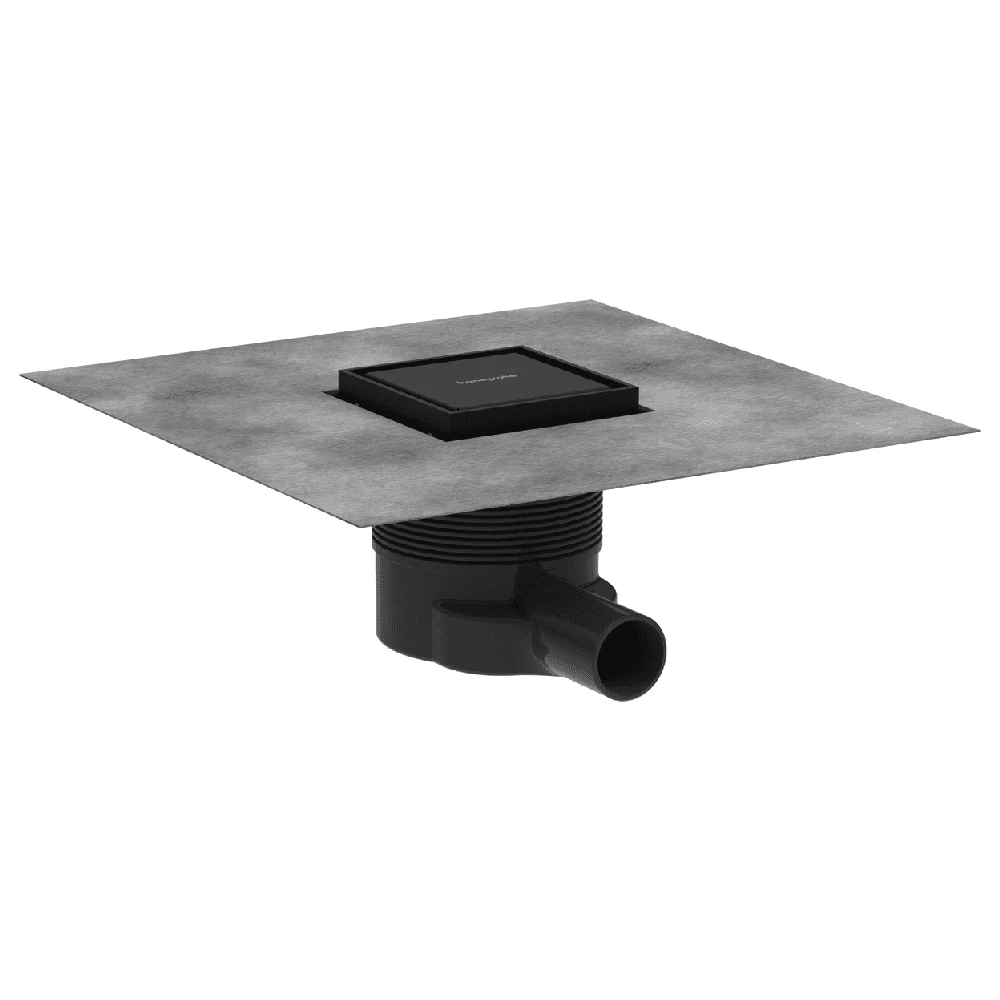

- Consists of: point drain, installation set, base set, pre-assembled sealing membrane, grate removal tool, siphon, screed protection cover
- pre-assembled sealing membrane
- tileable on the back side
- water seal: up to max. 50 mm
- connection diameter: DN40
- direction of outlet: horizontal
- easy adjustment to tile thickness with height adjustable frame (7 – 18 mm)
- up to 35 l/min drainage capacity
- removable water lock
- rotatable and adjustable siphon body
- grate removal tool allows easy removal of the finish set
- minimal installation height 79 mm
- Basic set height: 59 mm
- tile inlay depth: 12 mm
